IM-130APE Cuber, Modular

Ice

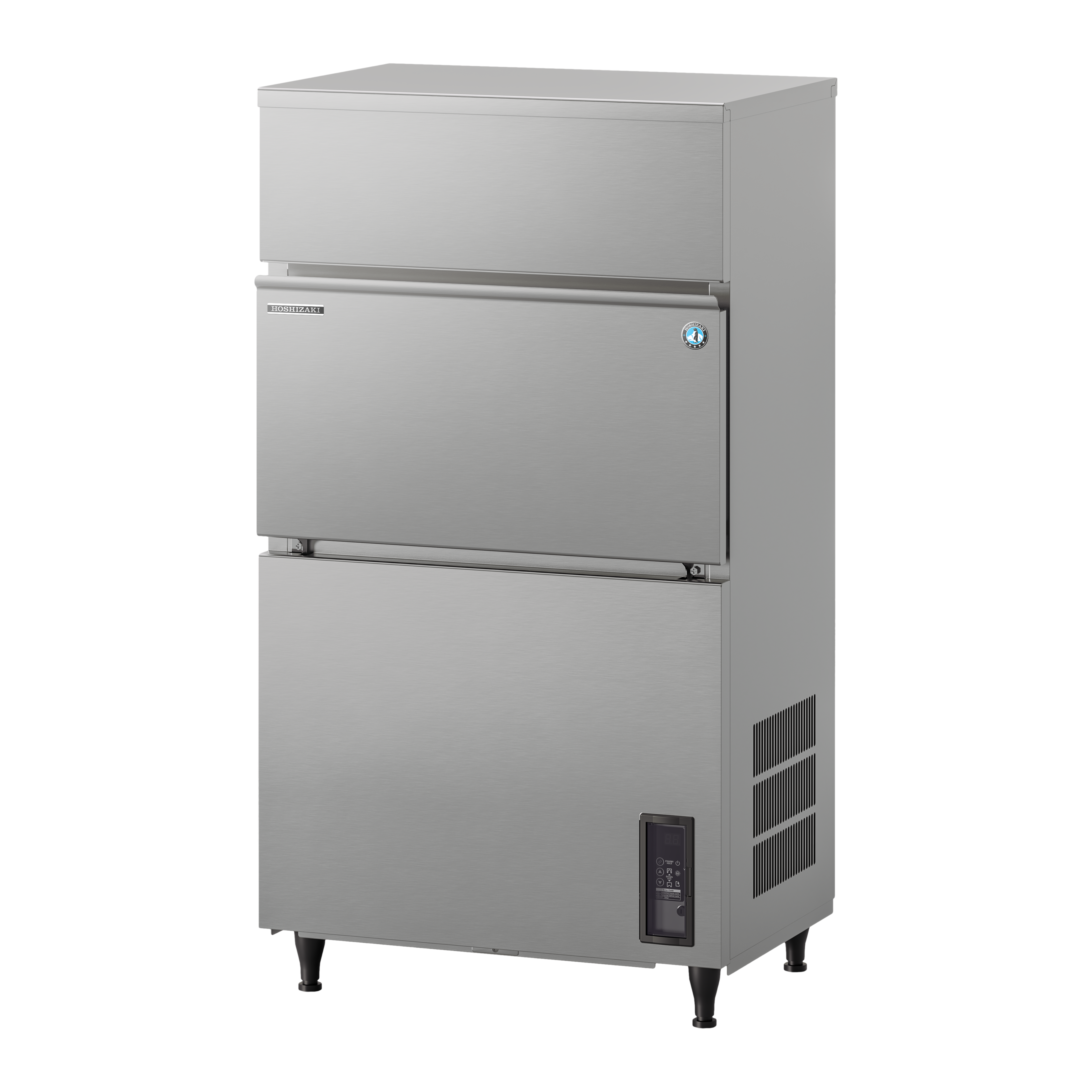

This Hoshizaki IM-130APE is the new standard IM CUBE variant of a Cuber, Modular producing up to 125 kg of the world-famous Hoshizaki ice cubes (Large cubes, Standard) per 24 hours. The dimensions of this model are 560 x 700 x 880 mm.

SET YOURSELF UP FOR GROWTH AND SUCCESS.

The IM CUBE models come with smart product improvements (compared to the previous IM range), such as automated cleaning (wash auto-restart), water circuit cleaning notification, condenser cleaning notification, scoop holder kit (optional), higher-grade stainless steel, magnetic DC Pump Motor with variable speed, and stand-by/wash buttons. Below is an overview of our new product features and their benefits. We also highlight our legacy features and their continued value.

Get quote View spec sheet

Key features Specifications Documentation Accessories

Key features

INCREASED HYGIENE & FOOD SAFETY

NEW: Scoop Holder-Kit (optional)
The closed water circuit provides maximum protection against any type of contamination during the entire cubing process.

INCREASED PERFORMANCE

NEW: More efficient magnetic DC Pump Motor with variable speed
Use of R290 natural refrigerant

INCREASED ICE QUALITY

NEW: Pump motor with smart water flow that adjusts to the different phases of the ice-making process, preventing chipped/cloudy ice cubes.
Closed Cell System, individual cube forming

INCREASED DURABILITY

NEW: Automated Cleaning
NEW: Less Wear & Tear: internal components made of food-grade stainless steel (AISI 430)
NEW: Magnetic DC Pump Motor with variable speed
Highest-grade insulation material (foaming instead of polystyrene)

OPERATOR/MAINTENANCE CONVENIENCE

NEW: Water circuit cleaning notification
NEW: Condenser cleaning notification
NEW: Control panel for easy adjustable dimple size
NEW: Water tank & DC pump are easily removable

INCREASED ENERGY SAVING

NEW: DC Pump Motor with variable speed
NEW: Stand-by function
Highest-grade insulation material (foaming instead of polystyrene)
Use of R290 natural refrigerant

INCREASED WATER SAVING

NEW: Magnetic DC Pump Motor with variable speed
NEW: Improved water tank design to consume less water

Specifications

Specification	Value
Item number	M117
Model name	IM-130APE
Ice maker type	Cube icemaker
Brand	Hoshizaki
Product configuration	Modular
Warranty period	3 Years on Parts & Labour
Country of origin	UK
Accessories included	Ice chute, Installation kit, Scoop
Sub series	IM Cube
Title	Cuber, Modular
Please observe	Water cooled units should have the condenser circuit connected to a self-contained recirculating system. It is likely that the connection of such units to the mains water supply may be a contravention of local water authority by-laws.
Corresponding water filters	4HC-H Twin Water Filter, 4HC Replacement Cartridge
Width	560 mm
Width (packed)	665 mm
Depth	700 mm
Depth (packed)	820 mm
Height	880 mm
Height (packed)	1054 mm
Volume (packed)	0.575 l
Electric Consumption	0.58 kW
Ambient temperature (maximum)	40 u00b0C
Ambient temperature (minimum)	1 u00b0C
Voltage range	Rated Voltage ±6%
Water supply pressure (maximum)	0.8MPa (8bar)
Water supply pressure (minimum)	0.07MPa (0.7bar)
Water supply temperature (maximum)	35 u00b0C
Water supply temperature (minimum)	5 u00b0C
Functions	Automated cleaning
Electrical circuit breaker protection	5 A
Exterior	Stainless steel AISI 441, Galvanized steel (Rear)
Gross weight	79 kg
Heat Rejection (AT 32ºC, WT 21ºC)	1.38 kW
Net weight	68 kg
Power supply	1/220 - 240V/50Hz
Cooling system	Air Cooled
Ice type	Large cubes, Standard
Ice production	125
Water consumption - Air cooled ice makers	0.52
Optional Extras	4HC-H water filtration, UV-C sanitization kit
Corresponding Bin(s)	B-140SA, B-210SA, B-340SA
CO2 equivalent	0.39 kg
Refrigerant	0.13 kg
Refrigerant type	R290
Corresponding top kits	TK-30 for B-140SA, B-210SA, B340SA (optional, not required), TK-8D for B-210SA, TK-8D + TK18D for B-340SA
SKU	M117
